• Smart BMS system to optimize the performance.

Communication: RS485/CAN/SNMP/Wif/Bluetooth, Compatible with different brand of solar inverter and chargers (optional).

• 380 degree protection: such as SOC/SOH/Anti-theft function et...

High discharge rate currents, suitable for on-grid or off-grid solar system and other loads.

• With front display panel for easy access to status of the batteries.

Model

Specifications

Battery Type

Nominal Capacity25°C, 0. 2C)WH

Adjustable working voltage(Vdc)

Max. Continuous discharge current(A)

Max, pulse discharge current(A)

Max. Continuous charge current (A)

Designed lifespan

Cell Equalizer Current (A)

Terminal

Storage duration

Safety standard

Maximun paratel connection

Ingress Protection

Communication function

Communicate with mainstream inverter

Protection Protection

BMF25314

25.6V314Ah

8.04kWh

20.8V-29.2V8c

LiFePO4

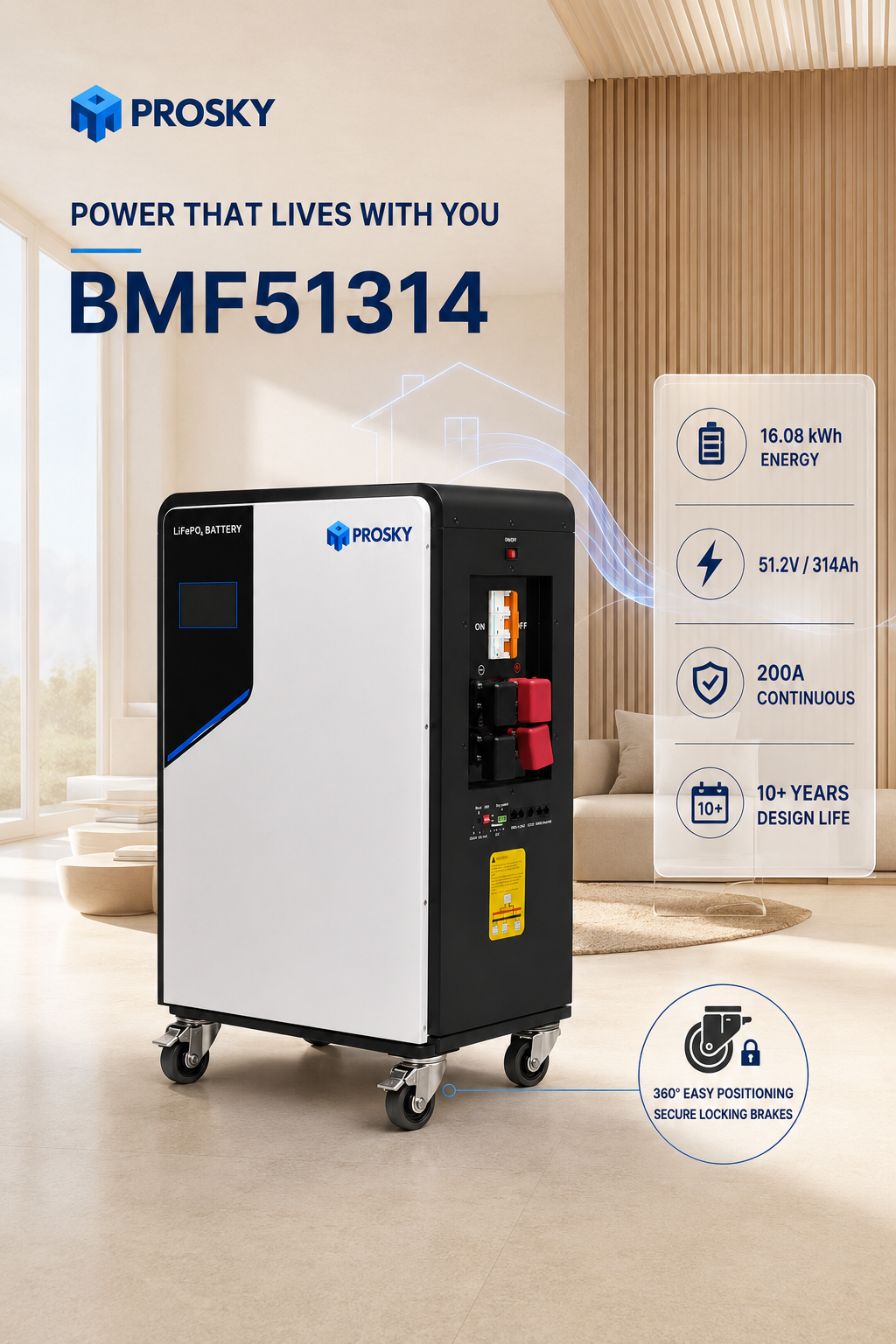

BMF51314

51.2V314Ah

16.08kWh

41.6V-58.AVdc

200A

300A(1 sec) configurable

200A

10° years life design

→ 70mA

M8

6 months at 25°C

IEC62619,UN38.3,MSDS

16pcs

IP21

RS485/CAN/ RS232 (standard), Wif/Bluetooth/Dry contact (optional)

PYLON/Growatt/Voltronic/GoodWe/Luxpowertek/Sorotec/GINLONG/Schneider/SMA/

Senergy/MUST/TBB/STUDER/WOW/Deye/SVC Energy etc.

Overcharge protection\Overdischarge protection\Overcurrent protection

Shortcircuit protection:Overtemperature protection

<40dB(1 meter)

20°C-+55°C (according to above charge and discharge specifications)

0-95%(no condensation)

＜3000

Noise(dB)

Working temperature

Humidity

Altitude(m)

Dimension

L*W*H(product size)mm

L*W*H(package size)mm

Net Weight (Kg):

Gross Weight(Kg):

L450*W330*H750

L600*W370*H90ął

62.8

83.4

Additional Features (optional feature) LCD Display

Due to different communication protocol versions, it is necessary to confirm clearly before shipmen Product specifications are subject to change without notice.

L500*W336*H837

L853*W540*H452

120.4

139.2
