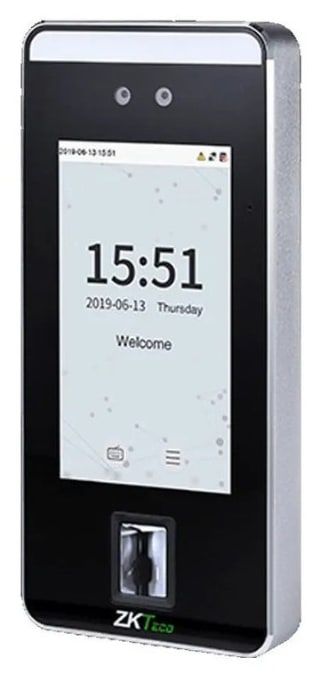

Model Speed Face-V5L ZAM180

Display 5″@ ISP Color LCD Screen (720*1280)

Camera WDR Low Light Camera @ 2MP

Operation System Linux

Hardware CPU: 1.GHz Dual Core

RAM: 1GB; ROM: 8GB

Supplement Light: Yes

Virtual Keypad: 12 Keys

Fingerprint Sensor: Z-ID

Authentication Method SpeedFace-V5L: Face / Fingerprint / Palm (Customized) / Card / Password

(Virtual Keypad)

SpeedFace-V5L[TD]: Face / Fingerprint / Palm (Customized) / Card / Password

(Virtual Keypad)

SpeedFace-V5L[TI]: Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)

Fingerprint Template Capacity 6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)

Face Template Capacity 6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)

Palm Template Capacity 【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)

Card Capacity 10,000 (1:N) (Optional) / 10,000 (1:1)

Transaction Capacity 200,000 (1:N) (Optional for Capacity Expansion)

Biometric Verification Speed ess than 0.3 sec (Fingerprint)

less than 1 sec (Facial Recognition)

less than 0.35 Sec (Palm)

Touchless Biometric Recognition Distance 1cm to 100cm (Facial Recognition)

Up to 50cm(Palm)

False Acceptance Rate (FAR) % FAR ≤ 0.01% ( Visible Light Facial Recognition)

FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)

FAR ≤ 0.05% (ZKPalm V12.0)

False Rejection Rate (FRR) % FRR ≤ 0.02% ( Visible Light Facial Recognition)

FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)

FRR ≤ 1.8% ( ZKPalm V12.0)

Biometric Algorithm ZK Face 3.9 Arm atura Palm (Customized) ZK Fingerprint V10.0

Card Type ID Card@125 kHz (Optional) IC Card@13.56 MHz (Optional) CEPAS(Optional)

QR Code Dynamic or Static QR codes on the ZKBio CVSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects (Support QR500 / 600 Series).

Communication CP/IP1 Wiegand (Input & Output)1 RS485: ZKTeco RS4851 Aux Inputs *1, Aux Outputs *1, Electric Lock1, Door Sensor1, Exit Button1, Alarm1, Doorbell*1

Standard Functions ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,

Record Query, Tamper Switch Alarm, Multiple Verification Methods

Power Supply DC 12V 3A

Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)

Operating Humidity 10% to 90% RH (Non-condensing)

Dimensions 91.93mm * 202.93mm * 21.5mm (LWH)

Gross Weight 1.3 Kg

Net Weight 0.6 Kg

Supported Software Software: ZKBio CVAccess Mobile App: ZKBio Zlink / ZSmart

Cloud Service: ZKBio Zlink

Installation Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

Certifications ISO14001, ISO9001, CE, FCC
