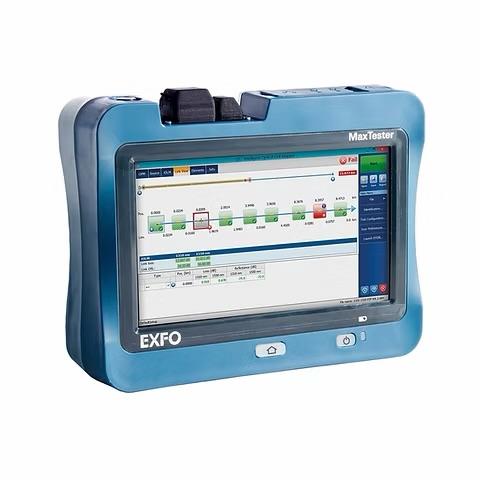

MaxTester 730D PON/metro OTDR

OPTIMIZED FOR FTTx/MDU FIBER DEPLOYMENTS AND TROUBLESHOOTING,

SUITABLE FOR METRO

Fully featured, entry-level, dedicated OTDR with

tablet-inspired design, suitable for metro and

optimized to test through optical splitters, for

troubleshooting.

KEY FEATURES

Rugged, handy, lightweight, tablet-inspired design built for

outside plant

7-inch, outdoor-enhanced touchscreen–the biggest in

the handheld industry

Dynamic range up to 39 dB for up to 132 km point-to-point (P2P)

Preliminary

seamless end-to-end FTTH characterization and

3-year

warranty

APPLICATIONS

FTTx/PON testing through splitters (up to 1×128)

FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON

Access network testing (P2P)

Metro links testing (P2P)

Live fiber troubleshooting

Short dead zones: event dead zone (EDZ) 0.5 m, attenuation dead

zone (ADZ) 2.2 m, PON dead zone 30 m

Passive optical LAN (POL)

Swap-Out

connector

12-hour autonomy

FTTx in-service testing at 1650 nm with optional in-line

GPON/XGS-PON power meter

RELATED PRODUCTS AND ACCESSORIES

Swap-Out connector, replaceable whenever necessary for optimal

performance over time without undue service cost and downtime

iOLM-ready: one-touch multiple acquisitions, with clear go/no-go

results presented in a straightforward visual format

Fiber inspection scope

FIP-400B (WiFi or USB)

Soft pulse suppressor bag

SPSB

Industry-leading onboard PDF reporting and post‑processing,

included for all users

3-year warranty

Advanced data

post‑processing software

Swap-Out

connector

MaxTester 730D PON/metro OTDR
