Technical Specifications

Brand: AORUS

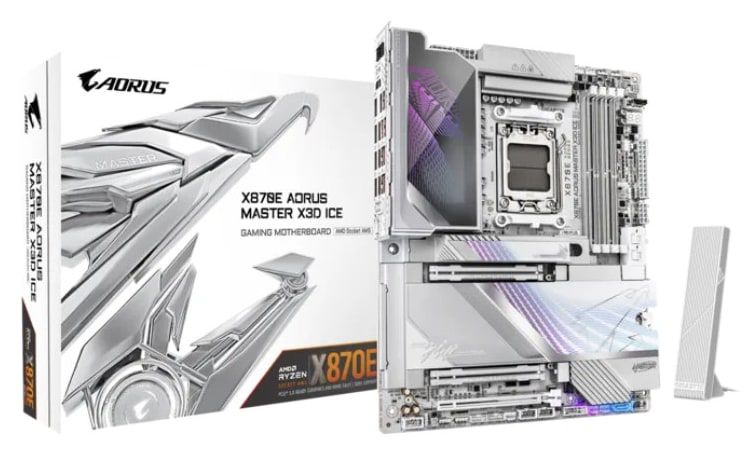

Model: X870E MASTER X3D

Product Type: ATX Motherboard

Chipset: AMD X870E

CPU Socket: AMD Socket AM5

Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Memory Support:

4 × DDR5 DIMM Slots

Up to 256GB DDR5 Memory

Memory Speeds up to 9000 MT/s (OC)

AMD EXPO™ & Intel® XMP Support

Expansion Slots:

1 × PCIe 5.0 x16

1 × PCIe 5.0 x8

1 × PCIe 4.0 x4

Storage:

5 × M.2 NVMe Slots

2 × PCIe 5.0

3 × PCIe 4.0

2 × SATA 6Gb/s

RAID 0 / 1 / 5 / 10 Support

Graphics Outputs:

2 × USB4 Type-C® (DisplayPort)

1 × HDMI 2.1

Networking:

10GbE LAN

5GbE LAN

Wi-Fi 7 (802.11be)

Bluetooth® 5.4

Audio:

Realtek® ALC1220 HD Audio Codec

ESS ES9118 DAC

DTS:X® Ultra

Optical S/PDIF Out

Rear I/O:

2 × USB4 Type-C® (40Gb/s)

1 × USB 3.2 Gen2x2 Type-C

1 × USB 3.2 Gen2 Type-C

7 × USB 3.2 Gen2 Type-A

Cooling Features:

Advanced VRM Thermal Armor

M.2 Thermal Guard XL

Smart Fan 6

Exclusive Features:

X3D Turbo Mode 2.0

D5 Bionic Corsa

AI SNATCH

DriverBIOS

EZ-Latch Plus

M.2 EZ-Latch Click

Q-Flash Plus

Debug Zone (Power, Reset & Clear CMOS Buttons)

RGB Fusion

Operating System: Windows 11 (64-bit)
